Cnc Router Machine for Wood

Cnc Router For Wood-R2000

furniture-cnc-router-marble-stone-tombstone_

Teknik ÖzelliklerTechnical Data
ModelR2000
EksenNumber of Axis3 axis
Kesim AlanıWorking Area1600x3200x150
Makine ÖlçüsüMachine Dimension2250x3800x1850
AğırlıkWeight1250 kgs.
X1 ve X2 EksenX1 & X2 AxisShihlin Servo Motor 750 w.
Y EksenY AxisShihlin Servo Motor 750 w.
Z EksenZ AxisShihlin Servo Motor 750 w.
Boşta İlerleme Hızı (G0)Speed (G0)40.000 mm./min.
HassasiyetCutting Tolerance0.001 mm.
İşleme KafasıSpindle Detail4.5 kw. / 1800 r.p.m. / Hertz (HSD İtalian Optionel)
ElektrikElectric3×380 V. / 50-60 hz. / 12 kw.
Cnc Kontrol ÜnitesiCnc Control PanelOptional1: 4 axis Mach 3 Ethernet+Screen+Mouse+Keyboard
Optional2: 4 axis Professional Syntech 6 mb. Cnc Contral Panel
TablaTableOptional1: Aluminium T slot
Optional2: Air Vacuum
Yağlama SistemiLubrication SystemCentral Lubrication
Takım DeğiştirmeTool MagazineManual
GarantiWarrantly24 months

Cnc Router For Wood-Event

furniture-cnc-router-marble-stone-tombstone

Teknik ÖzelliklerTechnical Data
ModelEventus
EksenNumber of Axis3 axis
Kesim AlanıWorking Area1332x2500x300 mm.
Makine ÖlçüsüMachine Dimension
AğırlıkWeight1300-1500 kgs.
X1 ve X2 EksenX1 & X2 AxisServo Motor
Y EksenY AxisServo Motor
Z EksenZ AxisServo Motor
Boşta İlerleme Hızı (G0)Speed (G0)25.000 mm./min.
HassasiyetCutting Tolerance
İşleme KafasıSpindle Detail4-6 HP, 100-20000 r.p.m.
ElektrikElectric
Cnc Kontrol ÜnitesiCnc Control PanelWindows Xp – Computer Control
TablaTableAir Vacuum
Yağlama SistemiLubrication SystemManual
Takım DeğiştirmeTool MagazineManual
GarantiWarrantly12 months

Cnc Router For Wood-Fuar2128

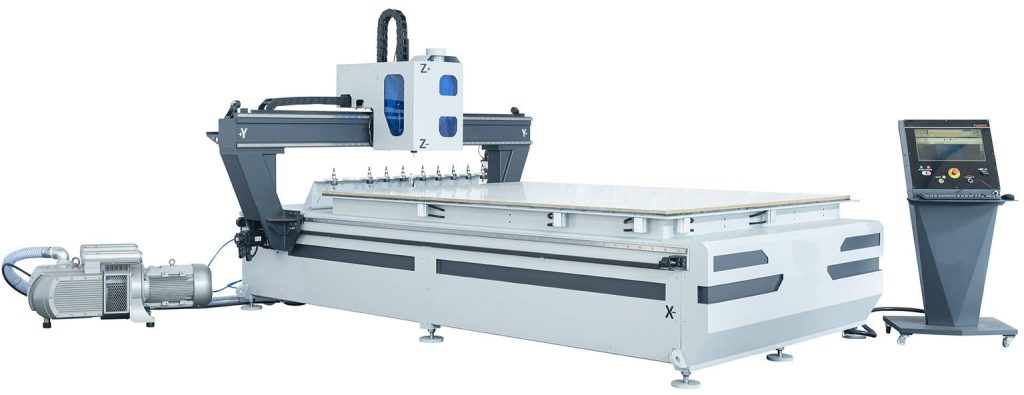

cnc-router-wood-marble



Teknik ÖzelliklerTechnical Data
ModelFuar2128
EksenNumber of Axis3 axis
Kesim AlanıWorking Area2100x2800x300 mm.
Makine ÖlçüsüMachine Dimension3820x3000x1995 mm.
AğırlıkWeight3000 kgs.
X1 ve X2 EksenX1 & X2 Axis1.5 kw. (Panasonic)
Y EksenY Axis1.5 kw. (Panasonic)
Z EksenZ Axis0.75 kw. (Panasonic)
Boşta İlerleme Hızı (G0)Speed (G0)
HassasiyetCutting Tolerance
İşleme KafasıSpindle Detail8.5 kw / 24.000 r.p.m. / Hertz
ElektrikElectric
Cnc Kontrol ÜnitesiCnc Control Panel10″ Touch Screen / Pegasus Cad-Cam
TablaTableAir Vacuum
Yağlama SistemiLubrication SystemAutomatic Lubrication Unit (Italian)
Takım DeğiştirmeTool MagazineManual
GarantiWarrantly12 months
